V-Erre0 system
The radiant system for renovations

DOCUMENTS AND RESOURCES
Underfloor heating and cooling systems | L02-579/3 |
Radiant systems | L02-913/3 |
V-BAND perimetral insulating strip | T02-425 |
Variable point mixing unit | T02-436 |
V-ERRE panel | T02-419 |

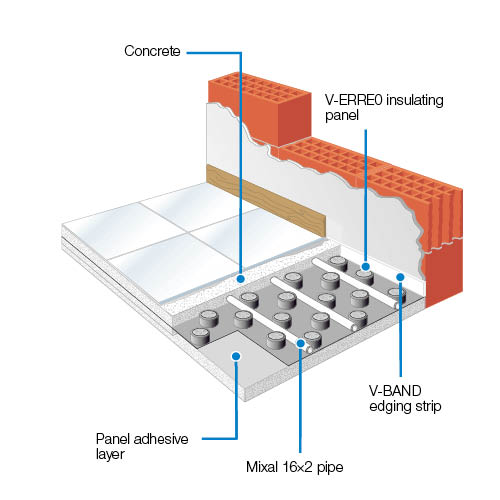

V-Erre0 is the heating and cooling system with high-resistance PS preformed panel with excellent mechanical properties - ideal for renovation - providing a total thickness of 22 mm, where a 16 or 17 mm pipe can be laid.
System installation is rapid thanks to the smooth panel, which is fastened to the multi-layer pipe by means of hooked clips or via special V-RAIL fixing bars made of plastic material and equipped with double-sided adhesive.
The V-Erre0 panel is the perfect solution for low thermal inertia systems, and is manufactured in accordance with UNI EN ISO 13163 and marked in accordance with European CE Directives.
In the case of installation with V-Foil or non-grounded elements, using an additional bonding primer is recommended.
CHARACTERISTICS OF THE V-ERRE0 SYSTEM


Panel characteristics | Measurement unit | V-ERRE0 |
Surface type | - | Pre-formed and perforated |
Panel working dimensions | mm x mm | 1400x800 |
Minimum pipe spacing | mm | 50 |
Panel thickness | mm | 22 |
Compressive strength | kPa | 200 |
Flexural strength | kPa | 250 |
