V-ELLE AND V-RAIL SYSTEMS

THE SOLUTION FOR INDUSTRIAL AND COMMERCIAL ENVIRONMENTS

The system suitable for industrial and open-space flooring, with high load-bearing capacity for heavy vehicles and industrial machinery

JUST ASK

V-Elle and V-Rail system

THE RADIANT SYSTEM FOR INDUSTRIAL AND COMMERCIAL ENVIRONMENTS

V-elle and v-rail



DOCUMENTS AND RESOURCES

Radiant systems L02-913/3

This is a heating and cooling system with a smooth panel suitable for industrial, commercial or open space environments, where high load resistance due to heavy vehicles or industrial machinery is required.

System installation is rapid thanks to the smooth panel, which is fastened to the multi-layer pipe by means of hooked clips or via special V-RAIL fixing bars made of plastic material and equipped with double-sided adhesive.

This solution is also widely used for removing ice and/or snow from outdoor surfaces such as forecourts, ramps, helipads, car parks, but also football or rugby pitches (where the insulation layer is removed).

Moulded panel is not required to install the V-Rail system.

CHARACTERISTICS OF THE V-ELLE AND V-RAIL SYSTEMS

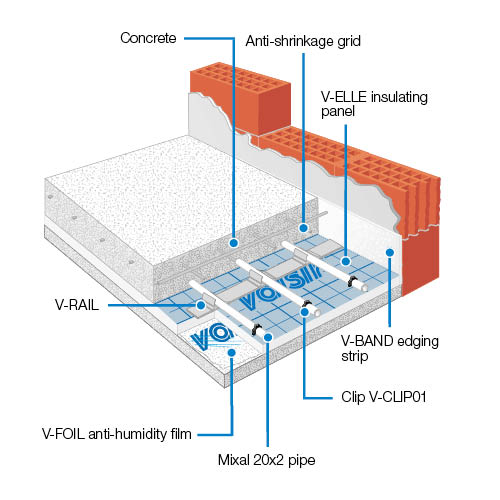

v-elle strati v-erre altezzav-rail
Panel characteristics Measurement unit V-ELLE anf V-RAIL
Resistance - Class 200
Surface type - Smooth
Panel working dimensions mm x m 1000x12 - 1000x8
Total thickness mm 20 - 30
Compressive strength kPa 200
Flexural strength kPa 250
Fire resistance - Euroclass E
Thermal conductivity W/mK 0,033
Thermal resistivity m2K/W 0,61 - 0,91
