V-Zeta system
The radiant system for industrial applications
DOCUMENTS AND RESOURCES
| Underfloor heating and cooling systems | L02-579/3 |
| Radiant systems | L02-913/3 |
| V-BAND perimetral insulating strip | T02-425 |
| Variable point mixing unit | T02-436 |
| V-ERRE panel | T02-419 |

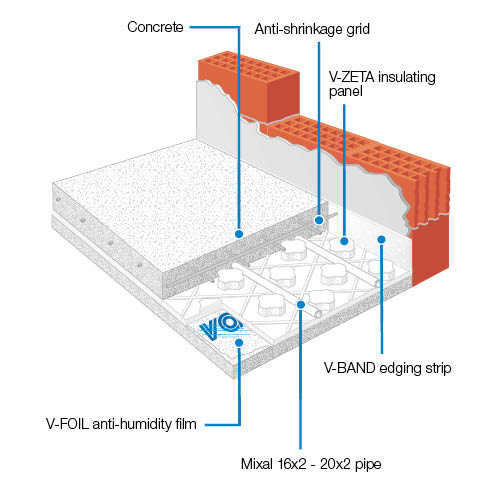

V-Zeta is the ideal system for creating underfloor heating systems for industrial environments without renouncing the ease of laying Valsir multilayer pipe on a shaped panel.
An economically viable solution also suitable for residential and office environments.
CHARACTERISTICS OF THE V-ZETA SYSTEM
| Panel characteristics | Measurement unit | V-ZETA |
| Resistance | - | Class 200 |
| Surface type | - | Pre-formed |
| Panel working dimensions | mmxmm | 1200x750 |
| Minimum pipe spacing | mm | 75 |
| Insulation thickness | mm | 20 |
| Total thickness | mm | 50 |
| Compressive strength | kPa | 200 |
| Flexural strength | kPa | 250 |
| Fire resistance | - | Euroclass E |
| Thermal conductivity | W/mK | 0,035 |
| Thermal resistivity | m2K/W | 0,57 |
