Greek V-Esse system
The radiant system for residential buildings
DOCUMENTS AND RESOURCES
| Underfloor heating and cooling systems | L02-579/4 |
| Underfloor heating and cooling systems | L02-913/5 |
| V-BAND perimetral insulating strip | T02-425 |
| Variable point mixing unit | T02-436 |
| V-ERRE EVO SYSTEM | T02-463 |
| V-ERRE panel | T02-419 |

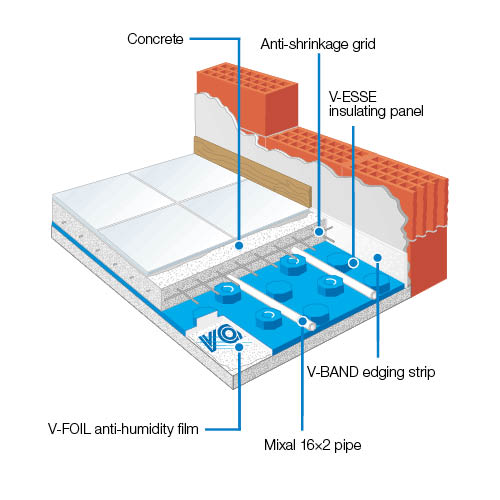

V-Esse is the heating and cooling system specially designed for residential and office buildings where the installation height is at least 90 mm.
By using the V-Acustic multi-layer soundproofing mat on a 100 kg/m2 screed, performance improvements of 28 dB can be achieved.
Noise reduction to impact sounds: (UNI EN 12354-2 - App. C2) ΔLW > 28 dB
V-ESSE SYSTEM FEATURES
| Panel characteristics | Measurement unit | V-ESSE |
| Resistance | - | Class 150 |
| Surface type | - | Pre-formed |
| Panel working dimensions | mm x mm | 1350x750 |
| Minimum pipe spacing | mm | 75 |
| Insulation thickness | mm | 20 - 30 |
| Total thickness | mm | 50 - 60 |
| Compressive strength | kPa | 150 |
| Flexural strength | kPa | 250 |
| Fire resistance | - | Euroclass E |
| Thermal conductivity | W/mK | 0,034 |
| Thermal resistivity | m2K/W | 0,59 - 0,88 |
