Linea XS
THE COMPACT TRAP FOR FLOOR-LEVEL SHOWERS
DOCUMENTS AND RESOURCES
| LINEAXS: Slim floor showers trap | L02-197/1 |
The Linea XS is an innovative and comprehensive solution for floor-level showers.
The trap body is made from PP, and has two slots for securing the trap in place, in order to ensure its proper positioning and orientation prior to pouring in concrete. The PVC drain body allows the height to be adjusted based on the installation requirements.
The ABS gutter has a slight slope, which allows the flow to be directed towards the central hole, and features a removable hair catcher that allows access to the trap for cleaning.
The 316 stainless steel grate is available in a polished or brushed finish.
PUNTI DI FORZA
DI LINEA XS
WATER GUARD
The Linea XS features a 28 mm hydraulic guard, in compliance with the UNI EN 1253 standard.
ADJUSTABLE HEIGHT
The installation height can range from a minimum of just 68 mm up to a maximum of 212 mm.
ADJUSTABLE ORIENTATION
The trap body can be oriented as desired, to meet any installation requirements.
MAXIMUM CREATIVITY
The grate can be freely positioned as well, and can even be installed close to the shower wall
PERFECT SEAL
Improved waterproofing thanks to the flange support for glues and waterproofing sheets
EASE OF MAINTENANCE
The trap can be fully inspected, with simple and extremely straightforward maintenance and cleaning.

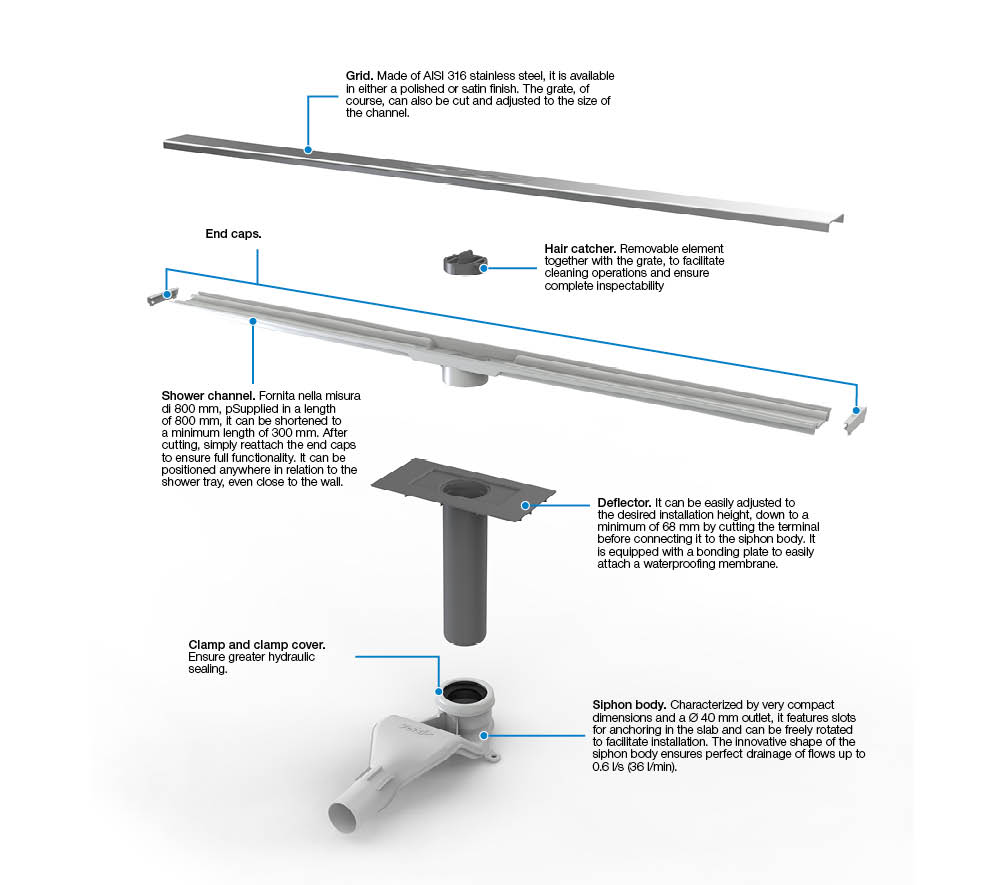

WHAT DOES THE LINEA XS CONSIST OF?
INFINITE POSSIBILITIES
The Linea XS allows for free expression of creativity, and can be perfectly adapted to suit any style or requirement.
The drain body can be adjusted by height for screed thicknesses ranging from 68 to 212 mm; even the grate support gutter can be adjusted from 13 to 23 mm, in order to adapt to different floor covering thicknesses.
Finally, it is also possible to adjust the size of the grate, which can be reduced by up to 300 mm in length!
