V-Erre system
The radiant system for small installation spaces

DOCUMENTS AND RESOURCES
Underfloor heating and cooling systems | L02-579/3 |
Radiant systems | L02-913/3 |
V-BAND perimetral insulating strip | T02-425 |
Variable point mixing unit | T02-436 |
V-ERRE panel | T02-419 |

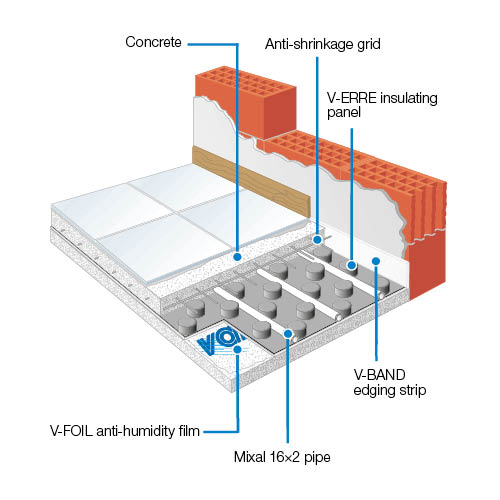

V-Erre is a heating and cooling system specially designed for residential and office buildings where the installation height is at least 62 mm.
V-Erre is the ideal solution for buildings where the installation space is minimal, but you do not want to give up the advantages of an underfloor heating and cooling system. In fact, coupling a rigid moulded sheet with a moulded polystyrene slab allows reducing spaces considerably.
By using the V-Acustic multi-layer soundproofing mat on a 100 kg/m2 screed, performance improvements of 28 dB can be achieved.
Noise reduction to impact sounds: (UNI EN 12354-2 - App. C2) ΔLW > 28 dB.
CHARACTERISTICS OF THE V-ERRE SYSTEM


Panel characteristics | Measurement unit | V-ERRE |
Resistance | - | Class 200 150 |
Surface type | - | Pre-formed |
Panel working dimensions | mm x mm | 1400x800 |
Minimum pipe spacing | mm | 50 |
Insulation thickness | mm | 10 - 20 - 30 - 40 - 50 - 60 |
Total thickness | mm | 32 - 42 - 52 - 62 - 72 - 82 |
Compressive strength | kPa | 200 - 150 |
Flexural strength | kPa | 250 - 200 |
Fire resistance | - | Euroclass F |
Fire resistance EPS | - | Euroclass E |
Thermal conductivity | W/mK | 0,033 |
Thermal resistivity | m2K/W | 0,30 - 0,61 - 0,91 - 1,21 - 1,52 - 1,82 |
